Hand Held Fiber Optic Tools One Step Automatic Blade Rotated Fiber Optic Cleaver

Product Categories

Fuji Science & Technologies (Wuhan) Co., Ltd.

Contact Now

Name: Hand Held Fiber Optic Tools One Step Automatic Blade Rotated Fiber Optic Cleaver
Brand: Sumitomo
Price: 1 USD

Brand Name : Sumitomo

Model Number : FC-7R-F, FC-7R-S

Certification : ROHS, REACH, UL, ISO

Place of Origin : Japan

MOQ : 1pcs

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000 pcs per month

Delivery Time : 10~15 work days

Packaging Details : plastic zip bag and carton

Ribbon count : 8

Fiber Coating : φ0.25～φ0.9mm

Cladding Diameter : 125um

Dimension : 98W x 47D x 58H (mm)

Weight : About 300g

Application : welding, fiber cutting

Contact Now

One step Hand Held Automatic Blade Rotation Fiber Cleaver

Features:

1. With each cleave, the blade is automatically rotated to a new scoring position on the cleaver blade.

2. Manual Blade Rotation Not Required.

3. Blade Height Adjustment Not Required.

4. Under the condition of no blade replacement and adjustment,FC-7R Can make 48000 fiber cleavers.(during normal use).

Blade automatic rotating function greatly reduce the maintenance work.

5. Hand-held,mini type.

6. Prevents Double Scoring of Fibers

7. Features Automatic Fiber Scrap Collection

8. Can Be Used for Single Fiber Cleaving or Up to 8 Count Ribbon.

Hand Held Fiber Optic Tools One Step Automatic Blade Rotated Fiber Optic Cleaver

Specification:

Mode		FC-7R-F	FC-7R-S
Application of optical fiber	Optical	Single fiber ~8 Count Ribbon	Single fiber (Fiber Coatingφ0.25～φ0.9mm)
	Cladding Diameter	125um
Cleave Length		10mm		6mm - 20mm (Single) Fiber--φ0.25mm 10 - 20mm (Ribbon---φ0.9mm
Dimension		98W x 47D x 58H (mm)
Maximum Blade Life		48,000 Fiber Cleaves, 96,000 (After Factory Adjustment)
Weight		About 300g
Application		Used for welding and		Single core optical fiber cutting

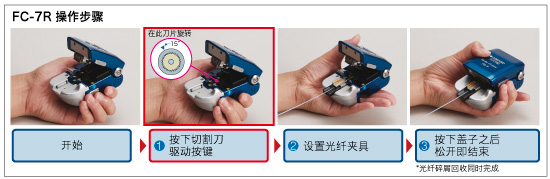

The operation steps of FC-7R

Hand Held Fiber Optic Tools One Step Automatic Blade Rotated Fiber Optic Cleaver
