SC LC FC ST MU MPO Fiber Optic Patch Cord Low Insertion Loss And High Return Loss

Name: SC LC FC ST MU MPO Fiber Optic Patch Cord Low Insertion Loss And High Return Loss
Brand: Fujioptic
Price: 1 USD

Buy cheap SC LC FC ST MU MPO Fiber Optic Patch Cord Low Insertion Loss And High Return Loss product

Brand Name : Fujioptic

Model Number : Connector-Multiple

Certification : ROHS, REACH, UL, ISO

Place of Origin : Wuhan, China

MOQ : 100pcs

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 10,000 pcs per month

Delivery Time : 3~7 work days

Packaging Details : plastic zip bag and carton

Connector type : FC , SC , ST , LC , MU , SMA

Fiber Mode : SM MM

Endface : PC UPC, APC

Cable Diammeter : Φ3,Φ2,Φ0.9 mm

Insertion Loss : ≤0.2db, ≤0.3db

Return Loss : ≥50db, ≥65db

Contact Now

SC LC FC ST MU MPO Fiber Optic Patch Cord Low Insertion Loss And High Return Loss

A fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV,

an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box.

Feature:

1. Telcordia GR326, IEC, TIA/EIA Standard Compliant

2. 100% Optical performance inspection and endface geometric

3. Low insertion loss and high return loss

4. Varieties of Cable Assemblies

5. (RoHS) Compliant

Fiber Optic Performance

Item	Parameter

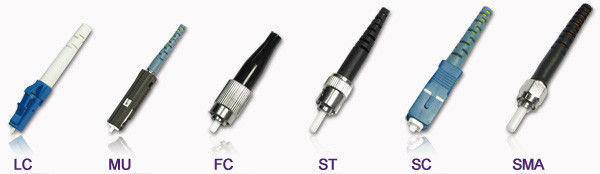

Connector	FC , SC , ST , LC , MU , SMA
Mode	SM		MM
Endface Application	UPC	APC	PC
Insertion Loss(db)	≤0.2	≤0.3	≤0.3
Return Loss(db)	≥50	≥65
Cable Dia(mm)	Φ3,Φ2,Φ0.9
Exchangeability(db)	≤0.2
Vibration(db)	≤0.2
Temp.Range(°)	≤0.2(-40~80°C)

Geometric Parameter of Endface

Item		Parameter
Endface Polishing		PC	APC
Radius of Curvature	SC	10~25	5~12
	LC	7~25	5~12
Apex Offset(um)		≤50
Fiber Spherical(nm)		-90~+50
Angular Error(°)		---	8°±0.3°

Ordering Information

Fanout Cord: FC /APC - SC /UPC / SM / Φ3 / S / LM

1 2 3 4 5 6 7 8

1 Connector Type	FC,SC,ST,MU,LC,SMA
2 Endface	PC,UPC,APC
3 Connector Type	FC,SC,ST,MU,LC,SMA
4 Endface	PC,UPC,APC
5 Fiber Mode	SM=Single mode,MM=Multimode
6 Cable Diameter	Φ0.9,Φ1.6,Φ2.0,Φ3

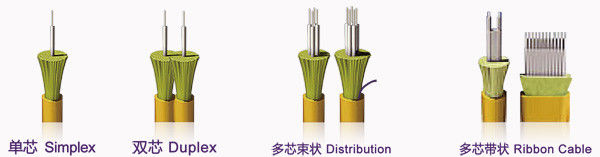

7 Cable Length	S:Simplex D:Duplex
8 Fiber Cable	L=1,2,3,4......meter,or as required
