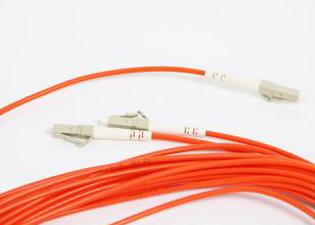

1310nm 1490nm 1550nm Three Window FBT Fiber Optic Splitter

Name: 1310nm 1490nm 1550nm Three Window FBT Fiber Optic Splitter
Brand: Fujioptics/OEM/ODM
Price: 1 USD

Buy cheap 1310nm 1490nm 1550nm Three Window FBT Fiber Optic Splitter product

Brand Name : Fujioptics/OEM/ODM

Model Number : FJ-SC015

Certification : ROHS.CE ,ISO9001

Place of Origin : CHINA

MOQ : 100pcs

Price : Negotiation

Payment Terms : L/C, D/P, Western Union

Supply Ability : 10000pcs

Delivery Time : 5-7 working days

Packaging Details : PE bag ,Carton box

Connector Type : SC,FC,LC,ST

Ferrule End-face : PC, UPC,APC

Fiber Mode : OM1 OM2 OM3

Wavelength : 1310/1550/1490/850/1300

Package : Steel Tube, ABS Black Box

Structure : 1*2/1*4/1*8/1*16/1*32/1*64

High Light : fiber optic coupler, fiber optic plc splitter

Contact Now

1310nm 1490nm 1550nm Multimode Three Window FBT Fiber Splitter

Description:

Multimode(OM1 OM2 OM3) FBT Fiber Optic Splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.

Feature:

Low Insertion loss

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength:

1310/1490/1550

Wide Operating Temperature:

From -40℃ to 85℃

High Reliability and Stability

Application:

FTTX Systems

PON Networks

CATV Links

Optical Signal Distribution

Compliance:

Telcordia GR-1209-CORE

Telcordia GR-1221-CORE

RoHS

Specification:

Type	Multimode Standard Fiber Splitters
Coupling Ratio (%)	50/50
Excess Loss (Typical) (dB)	0.5 (0.8)*
Max. Insertion Loss (dB)	3.5 (4.0)*
Uniformity (Max.) (dB)	0.6
Directivity (dB)	>40dB
Operating Wavelength (nm)	600-1600
Central Wavelength (nm)	850 or 1310 or 1550
Operating Temperature	-40° C - 85° C
Fiber Type	Corning Multimode 50/125, 62.5/125 Fiber
Fiber Pigtail Length (m)	1 or Custom on Request
Port Configuration	1x2 or 2x2
Package Dimension	Package A,B,C

*For 50/125 um, 62.5/125 um Fiber, 50% coupling ratio

Type	Multimode 1x3, 1x4 True Fusion Splitters
Port Configuration	1x3	1x4
Max. Insertion Loss (dB)	6.0 (6.5)*	7.2 (7.6)*
Uniformity (Max.) (dB)	1.2	1.2
Directivity (dB)	>40dB
Operating Wavelength (nm)	600-1600
Central Wavelength (nm)	850 or 1310
Operating Temperature	-40° C - 85° C
Fiber Type	Corning Multimode 50/125, 62.5/125, 100/140 Fiber
Fiber Pigtail Length (m)	1 or Custom on Request
Package Dimension	Package B,C

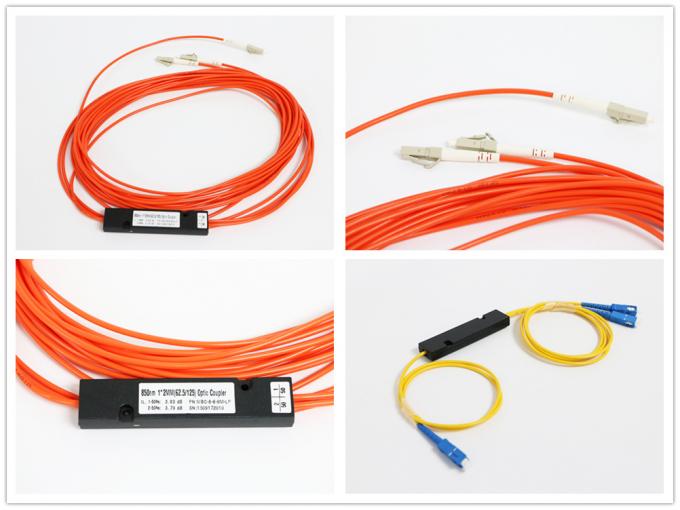

Product Picture:

1310nm 1490nm 1550nm Three Window FBT Fiber Optic Splitter
